1 How to Install CPU-Z
Installing CPU-Z is straightforward and takes just a few minutes. Follow these steps to get started.
Download CPU-Z
Visit the official CPUID website or download from trusted sources. CPU-Z is available in both installer and portable versions.
Run the Installer
Double-click the downloaded file. If you downloaded the portable version, simply extract the ZIP file to your desired location.
Follow Installation Wizard
For the installer version, follow the on-screen instructions. Choose installation directory and optional components if prompted.
Launch CPU-Z
After installation, launch CPU-Z from the Start menu or desktop shortcut. The portable version can be run directly from the extracted folder.
Note: CPU-Z requires Windows 7 or later, or Android 4.0+. No internet connection is required for basic functionality.
2 How to Read CPU-Z Results
Understanding CPU-Z results is essential for making informed decisions about your hardware.
CPU Tab Interpretation
- • Core Speed: Current CPU frequency (changes with load)
- • Multiplier: CPU multiplier × Bus Speed = Core Speed
- • Cores/Threads: Physical cores vs logical threads
- • Voltage: Current CPU voltage (important for overclocking)
Memory Tab Interpretation
- • Type: DDR generation (DDR3, DDR4, DDR5)
- • Size: Total installed RAM
- • Channel #: Single/Dual/Quad channel mode
- • DRAM Frequency: Actual memory speed (half of advertised speed for DDR)
Mainboard Tab Interpretation
- • Model: Exact motherboard model for driver searches
- • Chipset: Determines CPU compatibility
- • BIOS Version: Check for updates on manufacturer website
3 Understanding CPU Specifications
CPU specifications can be confusing. Here's what each metric means:
Clock Speed (Core Speed)
Measured in GHz, this indicates how many cycles per second the CPU can perform. Higher is generally better, but architecture matters more than raw speed.
Example: 3.5 GHz means 3.5 billion cycles per second
Cores and Threads
Cores are physical processing units. Threads are logical units (often 2 per core with hyperthreading/SMT). More cores help with multitasking and parallel workloads.
Example: 8 cores, 16 threads = 8 physical cores with hyperthreading
Cache Memory
Fast memory built into the CPU. L1 is fastest but smallest, L3 is largest but slower. Cache helps reduce memory access time.
Example: L3 cache of 16MB is good for gaming and productivity
Instruction Sets
Supported instruction sets (SSE, AVX, AVX2) determine what software can run. Modern CPUs support most instruction sets.
Example: AVX2 is required for some video encoding software

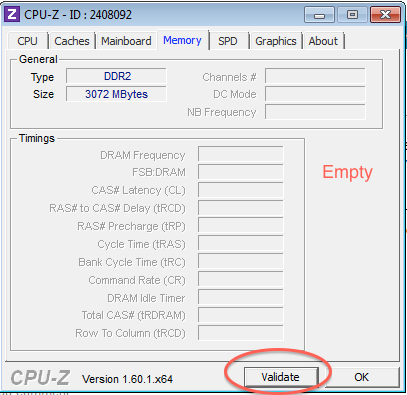

4 Memory Analysis with CPU-Z
CPU-Z provides detailed memory information crucial for system optimization and troubleshooting.
Checking Memory Type and Speed
Navigate to the Memory tab to see:
- • Current memory type (DDR3/DDR4/DDR5)
- • Real-time DRAM frequency
- • Channel configuration

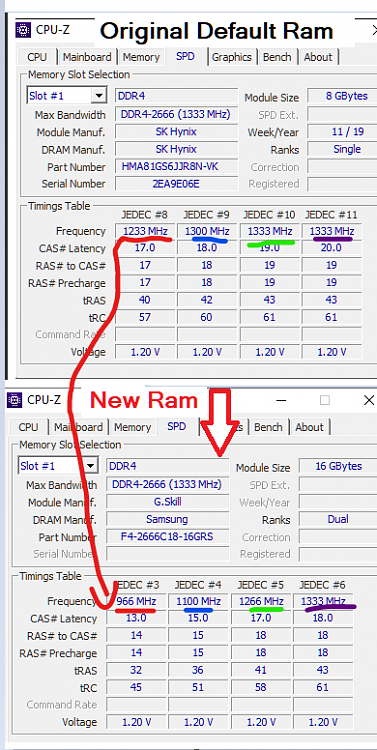

SPD Tab for Module Details
The SPD tab shows information for each memory stick:
- • Manufacturer and part number
- • Maximum supported frequency
- • Supported timings (CAS latency)
- • Module capacity
Understanding Dual Channel
If "Channel #" shows "Dual", your memory is running in dual-channel mode, providing better performance than single-channel. Ensure memory sticks are installed in the correct slots (usually slots 2 and 4 or 1 and 3).
Pro Tip:
Use the SPD tab to identify exact memory model numbers when upgrading. This ensures compatibility and optimal performance.
5 Benchmarking Your System
CPU-Z includes built-in benchmarking tools to test your processor's performance.
Running Benchmarks
- 1. Open CPU-Z and navigate to the Bench tab
- 2. Click "Bench CPU" to start the benchmark
- 3. Wait for the test to complete (takes 10-30 seconds)
- 4. View your single-thread and multi-thread scores
Understanding Scores
- • Single Thread: Performance of one core (important for gaming)
- • Multi Thread: Performance of all cores (important for productivity)
- • Compare with reference CPUs shown in the dropdown
When to Benchmark
- • After overclocking to verify stability
- • Before and after hardware upgrades
- • To compare different CPU configurations
- • When troubleshooting performance issues
Important: Close other applications before benchmarking for accurate results. CPU-Z benchmarks are synthetic and may not reflect real-world performance in all scenarios.
6 Exporting Hardware Reports
CPU-Z allows you to export detailed hardware reports for documentation and troubleshooting.
Export as TXT
- 1. Click "Tools" menu → "Save Report (.TXT)"
- 2. Choose save location
- 3. Report includes all tab information
- 4. Useful for text-based documentation
Export as HTML
- 1. Click "Tools" menu → "Save Report (.HTML)"
- 2. Choose save location
- 3. Creates formatted HTML report
- 4. Perfect for sharing and web viewing
Use Cases for Reports:
- • Document system specifications for technical support
- • Share hardware info in forums for troubleshooting
- • Keep records before and after upgrades
- • Verify hardware purchases
